OpenMock
OpenMock is a Go service that can mock services in integration tests, staging environment, or anywhere. The goal is to simplify the process of writing mocks in various channels. Currently it supports the following channels:
- HTTP
- gRPC
- Kafka
- AMQP (e.g. RabbitMQ)
Usage
Use it with docker.
$ docker run -it -p 9999:9999 -v $(pwd)/demo_templates:/data/templates checkr/openmock
More complete openmock instance (e.g. redis) with docker-compose.
$ docker-compose up
Test it.

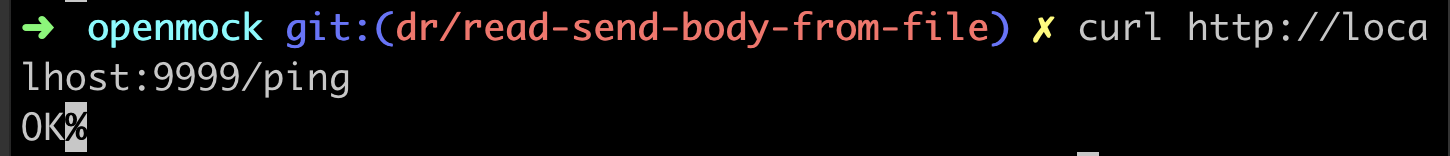

$ curl localhost:9999/ping
Dependencies.
- HTTP (native supported, thanks to https://echo.labstack.com/)
- One can configure HTTP port, set env
OPENMOCK_HTTP_PORT=80
- One can configure HTTP port, set env
- GRPC (supported through through HTTP/2 interface)
- One can configure GRPC port, set env
OPENMOCK_GRPC_PORT=50051
- One can configure GRPC port, set env
- Kafka (optional)
- To enable mocking kafka, set env
OPENMOCK_KAFKA_ENABLED=true. - One can also config the following kafka parameters, optionally with separate config for consumers and producers. For example
OPENMOCK_KAFKA_SEED_BROKERS,OPENMOCK_KAFKA_PRODUCER_SEED_BROKERS, andOPENMOCK_KAFKA_CONSUMER_SEED_BROKERSOPENMOCK_KAFKA_SEED_BROKERSOPENMOCK_KAFKA_SASL_USERNAMEOPENMOCK_KAFKA_SASL_PASSWORDOPENMOCK_KAFKA_TLS_ENABLED
- To enable mocking kafka, set env
- AMQP (optional)
- To enable mocking amqp, set env
OPENMOCK_AMQP_ENABLED=true - One can also config
OPENMOCK_AMQP_URL.
- To enable mocking amqp, set env
- NPM (development only)
- Used in Makefile during swagger admin API server generation
OpenMock Templates
Templates are YAML files that describe the behavior of OpenMock.
Templates Directory
You can put any number of .yaml or .yml files in a directory, and then point environment variable OPENMOCK_TEMPLATES_DIR to it. OpenMock will recursively (including subdirectories) load all the YAML files. For example:
# OPENMOCK_TEMPLATES_DIR=./demo_templates
./demo_templates
├── amqp.yaml
├── files
│ └── colors.json
├── http.yaml
├── jsonrpc.yaml
├── kafka.yaml
└── payload_from_file.yaml
Schema
OpenMock is configured a list of behaviors for it to follow. Each behavior is identified by a key, and a kind:
- key: respond-to-resource
kind: Behavior
Expect
It represents the channel to listen on and condition for the actions of the behavior to be performed. Available channels are:
- http
- kafka
- amqp
- grpc
For example, under what condition and from what channel should we proceed with the actions.
- key: no-op
kind: Behavior
expect:
# Condition checks if we need to do the actions or not
# It only proceeds if it evaluates to "true"
condition: '{{.HTTPHeader.Get "X-Token" | eq "t1234"}}'
# Use one (and only one) of the following channels - [http, kafka, amqp]
http:
method: GET
path: /ping
kafka:
topic: hello_kafka_in
amqp:
exchange: exchange_1
routing_key: key_in
queue: key_in
Actions
Actions are a series of functions to run. Availabe actions are:
- publish_amqp
- publish_kafka
- redis
- reply_http
- send_http
- reply_grpc
- sleep
- key: every-op
kind: Behavior
expect:
http:
method: GET
path: /ping
actions:
- publish_kafka:
topic: hello_kafka_out
payload: >
{
"kafka": "OK",
"data": {}
}
- sleep:
duration: 1s
- reply_http:
status_code: 200
body: OK
headers:
Content-Type: text/html
The actions by default run in the order defined in the mock file; you can adjust this by adding an int 'order' value from lowest to highest number. The default value for 'order' is 0.
- key: every-op
kind: Behavior
expect:
http:
method: GET
path: /ping
actions:
- publish_kafka:
topic: hello_kafka_out
payload: >
{
"kafka": "OK",
"data": {}
}
- sleep:
duration: 1s
# sleep first
order: -1000
Templates
Templates can be useful to assemble your payloads from parts
- key: dog
kind: Template
template: >
<animal>dog</animal>
- key: cat
kind: Template
template: >
<animal>cat</animal>
# $ curl 0:9999/fred
# <human> <name>fred</name> <pets> <animal>dog</animal> <animal>cat</animal> </pets> </human>
- key: get-freds-pets
kind: Behavior
expect:
http:
method: GET
path: /fred
actions:
- reply_http:
status_code: 200
body: >
<human>
<name>fred</name>
<pets>
{{template "dog"}}
{{template "cat"}}
</pets>
</human>
Abstract Behaviors
Abstract Behaviors can be used to parameterize some data.
When an abstract behavior and a behavior extending it both have actions defined, all of them are run when the behavior matches. Actions will run from lowest to highest value of the 'order' field; if this is the same for two actions the action defined earlier in the abstract behavior runs first, followed by actions in the concrete behavior. Be aware that values with all digits will be interpreted into int type (YAML syntax), and it will fail the condition check given that some helper functions are returning string types. Pipe to toString before the comparison or alternatively put quotes around the values. See example in abstract_behaviors.yml.
- key: fruit-of-the-day
kind: AbstractBehavior
values:
fruit: potato
expect:
condition: '{{.HTTPQueryString | contains .Values.day}}'
http:
method: GET
path: /fruit-of-the-day
actions:
- reply_http:
status_code: 200
body: '{"fruit": "{{.Values.fruit}}"}'
# $ curl 0:9999/fruit-of-the-day?day=monday
# {"fruit": "apple"}
- key: monday-fruit
kind: Behavior
extend: fruit-of-the-day
values:
day: monday
fruit: apple
# $ curl 0:9999/fruit-of-the-day?day=tuesday
# {"fruit": "potato"}
- key: tuesday-fruit
kind: Behavior
extend: fruit-of-the-day
values:
day: tuesday
actions:
# sleep then reply_http
- sleep:
duration: 1s
order: -1000
Dynamic templating
OpenMock leverages https://golang.org/pkg/text/template/ to write dynamic templates. Specifically, it supports a lot of Context and Helper Functions.
- Usage of
{{ expr }}. One can put{{ expr }}inside three types of places:expect.conditionaction.http.body,action.grpc.payload,action.kafka.payload,action.amqp.payloadaction.http.body_from_file,action.grpc.payload_from_file,action.kafka.payload_from_file,action.amqp.payload_from_file({{ expr }}will be in the file)
- Use Context inside
{{ expr }}..HTTPHeader # type: http.Header; example: {{.HTTPHeader.Get "X-Token"}} .HTTPBody # type: string; example: {{.HTTPBody}} .HTTPPath # type: string; example: {{.HTTPPath}} .HTTPQueryString # type: string; example: {{.HTTPQueryString}} .GRPCHeader # type: string; example: {{.GRPCHeader}} .GRPCPayload # type: string; example: {{.GRPCPayload}} .GRPCService # type: string; example: {{.GRPCService}} .GRPCMethod # type: string; example: {{.GRPCMethod}} .KafkaTopic # type: string; example: {{.KafkaTopic}} .KafkaPayload # type: string; example: {{.KafkaPayload}} .AMQPExchange # type: string; example: {{.AMQPExchange}} .AMQPRoutingKey # type: string; example: {{.AMQPRoutingKey}} .AMQPQueue # type: string; example: {{.AMQPQueue}} .AMQPPayload # type: string; example: {{.AMQPPayload}}
- Use helper functions inside
{{ expr }}. We recommend pipeline format (|) of the functions.# Supported functions defined in ./template_helper.go - - jsonPath # doc: https://github.com/antchfx/xpath - gJsonPath # doc: https://github.com/tidwall/gjson - xmlPath # doc: https://github.com/antchfx/xpath - uuidv5 # uuid v5 sha1 hash - redisDo # run redis commands. For example {{redisDo "RPUSH" "arr" "hi"}} - ... # Supported functions inherited from # https://github.com/Masterminds/sprig/blob/master/functions.go - replace - uuidv4 - regexMatch - ... # Examples {{.HTTPHeader.Get "X-Token" | eq "t1234"}} {{.HTTPBody | jsonPath "user/first_name" | replace "A" "a" | uuidv5 }} {{.HTTPBody | gJsonPath "users.0.first_name" }} {{.HTTPBody | xmlPath "node1/node2/node3"}}
Admin Interface
Openmock also by default provides an API on port 9998 to control the running instance. See api documentation. You can serve the api documentation by getting go-swagger and running:
./swagger serve --host 0.0.0.0 --port 9997 docs/api_docs/bundle.yaml"
Command Line Interface
Openmock has a command-line interface to help with certain tasks interacting with openmock instances. This is invoked with the omctl command. This uses the cobra library to provide a discoverable CLI; run omctl for a list of commands / flags.
CLI: Directory
Push
Pushes a local openmock model from the file system to a remote instance.
# Adds templates from the ./demo_templates directory to the instance running on localhost.
omctl push --directory ./demo_templates --url http://localhost:9998
Examples
Example: Mock HTTP
# demo_templates/http.yaml
# $ curl 0:9999/ping
# OK
- key: ping
kind: Behavior
expect:
http:
method: GET
path: /ping
actions:
- reply_http:
status_code: 200
body: OK
headers:
Content-Type: text/html
# $ curl 0:9999/token -H X-Token:t1234 -H Y-Token:t1234
# OK
- key: header-token-200
kind: Behavior
expect:
condition: '{{.HTTPHeader.Get "X-Token" | eq "t1234" | and (.HTTPHeader.Get "Y-Token" | eq "t1234")}}'
http:
method: GET
path: /token
actions:
- reply_http:
status_code: 200
body: OK
# $ curl 0:9999/token
# Invalid X-Token
- key: header-token-401
kind: Behavior
expect:
condition: '{{.HTTPHeader.Get "X-Token" | ne "t1234"}}'
http:
method: GET
path: /token
actions:
- reply_http:
status_code: 401
body: Invalid X-Token
Example: Mock GRPC
# demo_templates/grpc.yaml
- key: example_grpc
expect:
grpc:
service: demo_protobuf.ExampleService
method: ExampleMethod
actions:
- reply_grpc:
payload_from_file: './files/example_grpc_response.json'
Example: Mock Kafka
# demo_templates/kafka.yaml
- key: test_kafka_1
kind: Behavior
expect:
kafka:
topic: hello_kafka_in
actions:
- publish_kafka:
topic: hello_kafka_out
payload: >
{
"kafka": "OK",
"data": {}
}
- key: test_kafka_2
kind: Behavior
expect:
kafka:
topic: hello_kafka_in_2
actions:
- publish_kafka:
topic: hello_kafka_out
payload_from_file: './files/colors.json' # the path is relative to OPENMOCK_TEMPLATES_DIR
If you started the example from docker-compose, you can test the above kafka mocks by using a kt docker container.
# Exec into the container
docker-compose exec kt bash
# Run some kt commands inside the container
# Notice that the container is within the docker-compose network, and it connects to "kafka:9092"
$ kt topic
$ echo '{"123":"hi"}' | kt produce -topic hello_kafka_in -literal
$ kt consume -topic hello_kafka_out -offsets all=newest:newest
Example: Mock AMQP (e.g. RabbitMQ)
# demo_templates/amqp.yaml
- key: test_amqp_1
kind: Behavior
expect:
amqp:
exchange: exchange_1
routing_key: key_in
queue: key_in
actions:
- publish_amqp:
exchange: exchange_1
routing_key: key_out
payload: >
{
"amqp": "OK",
"data": {}
}
- key: test_amqp_2
kind: Behavior
expect:
amqp:
exchange: exchange_1
routing_key: key_in
queue: key_in
actions:
- publish_amqp:
exchange: exchange_1
routing_key: key_out
payload_from_file: './files/colors.json'
Example: Use Redis for stateful things (by default, OpenMock uses an in-memory miniredis)
# demo_templates/redis.yaml
- key: hello_redis
kind: Behavior
expect:
http:
method: GET
path: /test_redis
actions:
- redis:
- '{{.HTTPHeader.Get "X-TOKEN" | redisDo "SET" "k1"}}'
- '{{redisDo "RPUSH" "random" uuidv4}}'
- '{{redisDo "RPUSH" "random" uuidv4}}'
- '{{redisDo "RPUSH" "random" uuidv4}}'
- reply_http:
status_code: 200
body: >
{
"k1": "{{redisDo "GET" "k1"}}",
"randomStr": "{{redisDo "LRANGE" "random" 0 -1}}",
"random": [
{{ $arr := redisDo "LRANGE" "random" 0 -1 | splitList ";;" }}
{{ range $i, $v := $arr }}
{{if isLastIndex $i $arr}}
"{{$v}}"
{{else}}
"{{$v}}",
{{end}}
{{end}}
]
}
# To test
# curl localhost:9999/test_redis -H "X-TOKEN:t123" | jq .
Example: Send Webhooks
# demo_templates/webhook.yaml
- key: webhooks
kind: Behavior
expect:
http:
method: GET
path: /send_webhook_to_httpbin
actions:
- send_http:
url: "https://httpbin.org/post"
method: POST
body: '{"hello": "world"}'
headers:
X-Token: t123
- reply_http:
status_code: 200
body: 'webhooks sent'
# To test
# curl localhost:9999/send_webhook_to_httpbin
Example: Use data in templates
# demo_templates/http.yaml
- key: http-request-template
kind: Template
template: >
{ "http_path": "{{.HTTPPath}}", "http_headers": "{{.HTTPHeader}}" }
- key: color-template
kind: Template
template: >
{ "color": "{{.color}}" }
- key: teapot
kind: AbstractBehavior
expect:
http:
method: GET
path: /teapot
actions:
- reply_http:
status_code: 418
body: >
{
"request-info": {{ template "http-request-template" . }},
"teapot-info": {{ template "color-template" .Values }}
}
# $ curl 0:9999/teapot
# { "request-info": { "http_path": "/teapot", "http_headers": "map[Accept:[*/*] User-Agent:[curl/7.54.0]]" } , "teapot-info": { "color": "purple" } }
- key: purple-teapot
kind: Behavior
extend: teapot
values:
color: purple
Advanced pipeline functions
To enable advanced mocks, for example, your own encoding/decoding of the kafka messages, one can develop by directly importing the github.com/checkr/openmock package, making a copy of the swagger-generated server main, and passing in a custom OpenMock.
For example: (see example)
package main
import (
"github.com/checkr/openmock"
"github.com/checkr/openmock/swagger_gen/restapi"
"github.com/checkr/openmock/swagger_gen/restapi/operations"
/// etc
)
func consumePipelineFunc(c openmock.Context, in []byte) (out []byte, error) {
return decode(in), nil
}
func main() {
// server set up copy & paste...
// add our custom openmock functionality
om := &openmock.OpenMock{}
om.ParseEnv()
om.KafkaConsumePipelineFunc = consumePipelineFunc
server.ConfigureAPI(om)
// rest of server set up copy & paste...
}
GRPC Configuration Notes
OpenMock uses the APIv2 protobuf module (google.golang.org/protobuf). If your project uses the APIv1 protobuf module, you can use https://github.com/golang/protobuf/releases/tag/v1.4.0 and convert your messages to be APIv2 compatible with the proto.MessageV2 method.
Please note that OpenMock expects the payload or payload_from_file for a reply_grpc action to be in the json form of your Response protobuf message. The request should be in the Request protobuf message format as it is parsed into json to support jsonPath and gJsonPath operations.
Example configuration by directly importing the github.com/checkr/openmock package into a wrapper project.
func main() {
// server set up copy & paste...
// add our custom openmock functionality
om := &openmock.OpenMock{}
om.GRPCServiceMap = map[string]openmock.GRPCService{
"demo_protobuf.ExampleService": {
"ExampleMethod": openmock.RequestResponsePair{
Request: proto.MessageV2(&demo_protobuf.ExampleRequest{}),
Response: proto.MessageV2(&demo_protobuf.ExampleResponse{}),
},
},
}
om.ParseEnv()
server.ConfigureAPI(om)
// rest of server set up copy & paste...
Swagger
Swagger files / directories:
Makefile # contains build process for swagger generation
swagger/ # directory containing swagger definition, split
# up into a few files
index.yaml # all the model definitions are in here
health.yaml # method definitions relating to e.g. /health
swagger_gen/ # directory where generated swagger files go
restapi/
configure_open_mock.go # this file contains code further customized from the
# generated code to hook an implementation into the API
# the makefiles makes sure it is preserved when
# generating the other files
docs/
api_docs/
bundle.yaml # combined swagger spec file, generated by Makefile
pkg/
admin/ # code implementing the handlers for the swagger API
Install Swagger
brew tap go-swagger/go-swagger
brew install go-swagger
Generate
make gen- bundles the separate swagger files and generates swagger_genmake build- builds the executablesomandomctl
Run
OPENMOCK_REDIS_TYPE=redis OPENMOCK_REDIS_URL=<redis Url, e.g. redis://localhost:6379> OPENMOCK_TEMPLATES_DIR=./demo_templates ./om --port 9998
