Graphik is a Backend as a Service implemented as an identity-aware, permissioned, persistant document/graph database & pubsub server written in Go.

Support: [email protected]

• Problem Statement
  • Traditional relational databases are powerful but come with a number of issues that interfere with agile development methodologies:
  • Traditional non-relational databases are non-relational
  • Traditional non-relational databases often don't have a declarative query language
  • Traditional non-relational databases often don't support custom constraints
  • No awareness of origin/end user accessing the records(only the API/dba making the request)
  • Solution
• Features
• Key Dependencies
• Flags
• gRPC Client SDKs
• Implemenation Details
  • Primitives
  • Identity Graph
  • Login/Authorization/Authorizers
    • Authorizers Examples
  • Secondary Indexes
    • Secondary Index Examples
  • Constraints
    • Constraint Examples
  • Triggers
    • Trigger Examples
  • GraphQL vs gRPC API
  • Streaming/PubSub
  • Additional Details
• Sample GraphQL Queries
  • Get Currently Logged In User(me)
  • Get the Graph Schema
  • Set a Request Authorizer
  • Create a Document
  • Traverse Documents
  • Traverse Documents Related to Logged In User
  • Change Streaming
  • Broadcasting a Message
  • Filtered Streaming
• Deployment
  • Docker-Compose
  • Kubernetes
  • Mac/OSX (Homebrew)
• Open ID Connect Providers
  • Google
  • Microsoft
  • Okta
  • Auth0
• Glossary

Problem Statement

Traditional relational databases are powerful but come with a number of issues that interfere with agile development methodologies:

• database schema setup requires application context & configuration overhead
• database schema changes are often dangerous and require skilled administration to pull off without downtime
• password rotation is burdensome and leads to password sharing/leaks
• user/application passwords are generally stored in an external store(identity provider) causing duplication of passwords(password-sprawl)
• traditional database indexing requires application context in addition to database administration

Because of these reasons, proper database adminstration requires a skilled database adminstration team(DBA).

This is bad for the following reasons:

• hiring dba's is costly
• dba's generally have little context of the API accessing the database(only the intricacies of the database itself)
• communication between developers & dba's is slow (meetings & JIRA tickets)

Traditional non-relational databases are non-relational

• many times developers will utilize a NOSQL database in order to avoid the downsides of traditional relational databases
• this leads to relational APIs being built on non-relational databases

Because of these reasons, APIs often end up developing anti-patterns

• references to related objects/records are embedded within the record itself instead of joined via foreign key
  • as an API scales, the number of relationships will often grow, causing embedded relationships and/or multi-request queries to grow
• references to related objects/records are stored as foreign keys & joined client-side via multiple requests(slow)

Traditional non-relational databases often don't have a declarative query language

• declarative query languages are much easier to build via graphical tooling for since a single query "console" is generally the only requirement.
• without a declarative query language, interaction with the database often involves complicated forms on a user-interface to gather user input.
• declarative query languages open up database querying to analysts, operators, managers and others with core competencies outside of software programming.

Traditional non-relational databases often don't support custom constraints

• constraints are important for ensuring data integrity
• for instance, you may want to apply a constraint to the "age" field of a user to ensure it's greater than 0 and less than 150
• this leads to developers enforcing constraints within the applications themselves, which leads to bugs

No awareness of origin/end user accessing the records(only the API/dba making the request)

• database "users" are generally expected to be database administrators and/or another API.
• 3rd party SSO integrations are generally non-native
• databases may be secured properly by the dba team while the APIs connecting to them can be insecure depending on the "origin" user

This is bad for the following reasons:

• dba teams falsely assuming their database resources are secured due to insecure APIs
• api teams falsely assuming their api resources are secured due to insecure database administration

Solution

• a loosely typed Graph database with built in identity awareness via a configured identity provider(Google, Microsoft, Okta, Auth0, etc)
  • relational-oriented benefits of a SQL database
  • non-relational-oriented productivity benefits of a NOSQL database
• zero password management- this is delegated to the configured identity provider
• schema-optional for productivity gains - constraints enforce custom constraints when necessary
• "identity graph" which creates automatically creates connections between users & the database objects the create/modify
  • index-free-adjacency allows insanely fast relational lookups from the POV of the origin user
• fine-grained authorization model to support requests directly from the origin user/public client(user on browser, ios app, android app, etc)
  • enforce role-based-access-control based on attributes found on the profile of the user manged by the identity provider
• graphQL API to support a declarative query language for public clients(user on browser, ios app, android app, etc), data analysts, and database administrators
• gRPC API for api -> database requests - gRPC tooling server side is more performant & has better tooling
  • auto-generate client SDK's in most languages (python, javascript, csharp, java, go, etc)
• database schema operations managed via integration with state of the art change management/automation tooling - terraform

Features

• 100% Go
• Native gRPC Support
• GraphQL Support
• Native Document & Graph Database
• Index-free Adjacency
• Native OAuth/OIDC Support & Single Sign On
• Embedded SSO protected GraphQl Playground
• Persistant(bbolt LMDB)
• Identity-Aware PubSub with Channels & Message Filtering(gRPC & graphQL)
• Change Streams
• Extended Common Expression Language Query Filtering
• Extended Common Expression Language Request Authorization
• Extended Common Expression Language Constraints
• Extended Common Expression Language Server Side Triggers
• Loosely-Typed(mongo-esque)
• Horizontal Scalability/HA via Raft Consensus Protocol
• Prometheus Metrics
• Pprof Metrics
• Safe to Deploy Publicly(with authorizers/tls/constraints/cors)
• Read-Optimized
• Full Text Search Expression Macros/Functions(startsWith, endsWith, contains)
• RegularExp Expression Macros/Functions(matches)
• Geographic Expression Macros/Functions(geoDistance)
• Cryptographic Expression Macros/Functions(encrypt, decrypt, sha1, sha256, sha3)
• JWT Expression Macros/Functions(parseClaims, parseHeader, parseSignature)
• Collection Expression Macros/Functions(in, map, filter, exists)
• String Manipulation Expression Macros/Functions(replace, join, titleCase, lowerCase, upperCase, trimSpace, trimPrefix, trimSuffix, render)
• URL Introspection Expression Macros/Functions(parseHost, parseScheme, parseQuery, parsePath)
• Client to Server streaming(gRPC only)
• Terraform Provider for Schema Operations & Change Automation
• Command Line Interface
• Multi-Node Kubernetes Manifest
• Mutual TLS(optional)

Key Dependencies

• google.golang.org/grpc
• github.com/google/cel-go/cel
• go.etcd.io/bbolt
• go.uber.org/zap
• golang.org/x/oauth2
• github.com/99designs/gqlgen
• github.com/autom8ter/machine
• github.com/graphikDB/raft
• github.com/graphikDB/generic
• github.com/graphikDB/trigger

Flags

please note that the following flags are required:

• --root-users
• --open-id

      --allow-headers strings             cors allow headers (env: GRAPHIK_ALLOW_HEADERS) (default [*])
      --allow-methods strings             cors allow methods (env: GRAPHIK_ALLOW_METHODS) (default [HEAD,GET,POST,PUT,PATCH,DELETE])
      --allow-origins strings             cors allow origins (env: GRAPHIK_ALLOW_ORIGINS) (default [*])
      --debug                             enable debug logs (env: GRAPHIK_DEBUG)
      --environment string                deployment environment (k8s) (env: GRAPHIK_ENVIRONMENT)
      --join-raft string                  join raft cluster at target address (env: GRAPHIK_JOIN_RAFT)
      --listen-port int                   serve gRPC & graphQL on this port (env: GRAPHIK_LISTEN_PORT) (default 7820)
      --open-id string                    open id connect discovery uri ex: https://accounts.google.com/.well-known/openid-configuration (env: GRAPHIK_OPEN_ID) (required)
      --raft-max-pool int                 max nodes in pool (env: GRAPHIK_RAFT_MAX_POOL) (default 5)
      --raft-peer-id string               raft peer ID - one will be generated if not set (env: GRAPHIK_RAFT_PEER_ID)
      --raft-secret string                raft cluster secret (so only authorized nodes may join cluster) (env: GRAPHIK_RAFT_SECRET)
      --require-request-authorizers       require request authorizers for all methods/endpoints (env: GRAPHIK_REQUIRE_REQUEST_AUTHORIZERS)
      --require-response-authorizers      require request authorizers for all methods/endpoints (env: GRAPHIK_REQUIRE_RESPONSE_AUTHORIZERS)
      --root-users strings                a list of email addresses that bypass registered authorizers (env: GRAPHIK_ROOT_USERS)  (required)
      --storage string                    persistant storage path (env: GRAPHIK_STORAGE_PATH) (default "/tmp/graphik")
      --tls-cert string                   path to tls certificate (env: GRAPHIK_TLS_CERT)
      --tls-key string                    path to tls key (env: GRAPHIK_TLS_KEY)

gRPC Client SDKs

• Go
• Python
• PHP
• Javascript
• Java
• C#
• Ruby

User Interface

Please take a look at the following options for stategate user-interface clients:

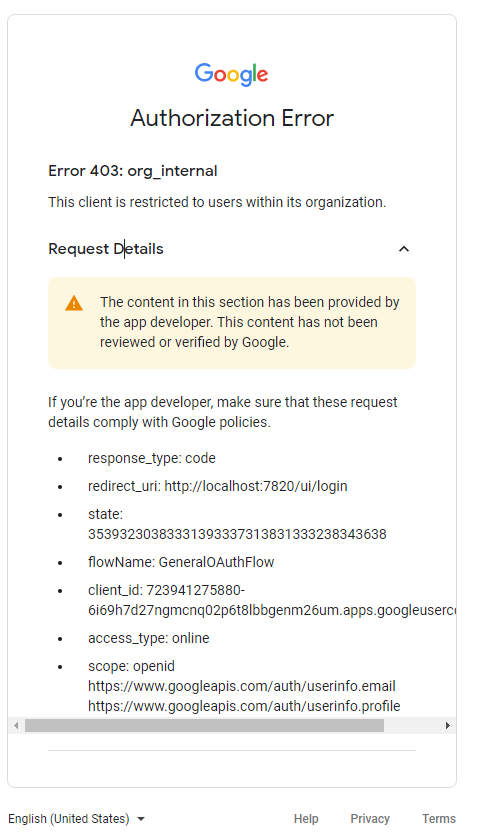

• OAuth GraphQL Playground: A graphQL IDE that may be used to connect & interact with the full functionality of the stategate graphQL API as an authenticated userth GraphQL Playground: A graphQL IDE that may be used to connect & interact with the full functionality of the stategate graphQL API as an authenticated user

Implemenation Details

• graphQL Schema
• graphQL Schema Documentation
• gRPC Schema
• gRPC Schema Documentation

Primitives

• Ref == direct pointer to an doc or connection.

message Ref {
  // gtype is the type of the doc/connection ex: pet
  string gtype =1 [(validator.field) = {regex : "^.{1,225}$"}];
  // gid is the unique id of the doc/connection within the context of it's type
  string gid =2 [(validator.field) = {regex : "^.{1,225}$"}];
}

• Doc == JSON document in document storage terms AND vertex/node in graph theory

message Doc {
    // ref is the ref to the doc
    Ref ref =1 [(validator.field) = {msg_exists : true}];
    // k/v pairs
    google.protobuf.Struct attributes =2;
}

• Connection == graph edge/relationship in graph theory. Connections relate Docs to one another.

message Connection {
  // ref is the ref to the connection
  Ref ref =1 [(validator.field) = {msg_exists : true}];
  // attributes are k/v pairs
  google.protobuf.Struct attributes =2;
  // directed is false if the connection is bi-directional
  bool directed =3;
  // from is the doc ref that is the source of the connection
  Ref from =4 [(validator.field) = {msg_exists : true}];
  // to is the doc ref that is the destination of the connection
  Ref to =5 [(validator.field) = {msg_exists : true}];
}

Identity Graph

• any time a document is created, a connection of type created from the origin user to the new document is also created
• any time a document is created, a connection of type created_by from the new document to the origin user is also created
• any time a document is edited, a connection of type edited from the origin user to the new document is also created(if none exists)
• any time a document is edited, a connection of type edited_by from the new document to the origin user is also created(if none exists)
• every document a user has ever interacted with may be queried via the Traverse method with the user as the root document of the traversal

Login/Authorization/Authorizers

• an access token Authorization: Bearer ${token} from the configured open-id connect identity provider is required for all database functionality
• the access token is used to fetch the users info from the oidc userinfo endpoint fetched from the oidc metadata url
• if a user is not present in the database, one will be automatically created under the gtype: user with their email address as their gid
• once the user is fetched, it is evaluated(along with the request & request method) against any registered authorizers(CEL expression) in the database.
  • if an authorizer evaluates false, the request will be denied
  • authorizers may be used to restrict access to functionality by domain, role, email, etc
  • registered root users(see flags) bypass these authorizers
• authorizers are completely optional but highly recommended

please note:

• setAuthorizers method overwrites all authorizers in the database
• authorizers may be listed with the getSchema method

Authorizers Examples

1. only allow access to the GetSchema method if the users email contains coleman AND their email is verified

mutation {
  setAuthorizers(input: {
    authorizers: [{
      name: "getSchema",
      method: "/api.DatabaseService/GetSchema",
      expression: "this.user.attributes.email.contains('coleman') && this.user.attributes.email_verified"
      target_requests:true,
      target_responses: true
    }]
  })
}

2. only allow access to the CreateDoc method if the users email endsWith acme.com AND the users email is verified AND the doc to create is of type note

mutation {
  setAuthorizers(input: {
    authorizers: [{
      name: "createNote",
      method: "/api.DatabaseService/CreateDoc",
      expression: "this.user.attributes.email.endsWith('acme.com') && this.user.attributes.email_verified && this.target.ref.gtype == 'note'"
      target_requests:true,
      target_responses: false
    }]
  })
}

Secondary Indexes

• secondary indexes are CEL expressions evaluated against a particular type of Doc or Connection
• indexes may be used to speed up queries that iterate over a large number of elements
• secondary indexes are completely optional but recommended

please note:

• setIndexes method overwrites all indexes in the database
• indexes may be listed with the getSchema method

Secondary Index Examples

1. index documents of type product that have a price > 100

mutation {
  setIndexes(input: {
    indexes: [{
    	name: "expensiveProducts"
			gtype: "product"
			expression: "int(this.attributes.price) > 100"
			target_docs: true
			target_connections: false
    }]
  })
}

you can search for the document within the new index like so:

query {
	searchDocs(where: {
		gtype: "product"
		limit: 1
		index: "expensiveProducts"
	}){
		docs {
			ref {
				gid
				gtype
			}
			attributes
		}
	}
}

{
  "data": {
    "searchDocs": {
      "docs": [
        {
          "ref": {
            "gid": "1lw7gcc5yQ01YbLcsgMX0iz0Sgx",
            "gtype": "product"
          },
          "attributes": {
            "price": 101,
            "title": "this is a product"
          }
        }
      ]
    }
  },
  "extensions": {}
}

Constraints

• constraints are CEL expressions evaluated against a particular type of Doc or Connection to enforce custom constraints
• constraints are completely optional

please note:

• setConstraints overwrites all constraints in the database
• constraints may be listed with the getSchema method

Constraint Examples

1. ensure all documents of type 'note' have a title

mutation {
  setConstraints(input: {
    constraints: [{
    	name: "noteValidator"
			gtype: "note"
			expression: "this.attributes.title != ''"
			target_docs: true
			target_connections: false
    }]
  })
}

2. ensure all documents of type 'product' have a price greater than 0

mutation {
  setConstraints(input: {
    constraints: [{
    	name: "productValidator"
			gtype: "product"
			expression: "int(this.attributes.price) > 0"
			target_docs: true
			target_connections: false
    }]
  })
}

Triggers

• triggers may be used to automatically mutate the attributes of documents/connections before they are commited to the database
• this is useful for automatically annotating your data without having to make additional client-side requests

Trigger Examples

1. automatically add updated_at & created_at timestamp to all documents & connections

mutation {
	setTriggers(input: {
		triggers: [
		{
				name: "updatedAt"
				gtype: "*"
				expression: "true"
				trigger: "{'updated_at': now()}"
				target_docs: true
				target_connections: true
		},
		{
				name: "createdAt"
				gtype: "*"
				expression: "!has(this.attributes.created_at)"
				trigger: "{'created_at': now()}"
				target_docs: true
				target_connections: true
		},
		]
	})
}

{
  "data": {
    "setTriggers": {}
  },
  "extensions": {}
}

User Interface

Please take a look at the following options for stategate user-interface clients:

• OAuth GraphQL Playground: A graphQL IDE that may be used to connect & interact with the full functionality of the stategate graphQL API as an authenticated user

GraphQL vs gRPC API

In my opinion, gRPC is king for svc-svc communication & graphQL is king for developing user interfaces & exploring data.

In graphik the graphQL & gRPC are nearly identical, but every request flows through the gRPC server natively - the graphQL api is technically a wrapper that may be used for developing user interfaces & querying the database from the graphQL playground.

The gRPC server is more performant so it is advised that you import one of the gRPC client libraries as opposed to utilizing the graphQL endpoint when developing backend APIs.

The graphQL endpoint is particularly useful for developing public user interfaces against since it can be locked down to nearly any extent via authorizers, cors, constraints, & tls.

Streaming/PubSub

Graphik supports channel based pubsub as well as change-based streaming.

All server -> client stream/subscriptions are started via the Stream() endpoint in gRPC or graphQL. All messages received on this channel include the user that triggered/sent the message. Messages on channels may be filtered via CEL expressions so that only messages are pushed to clients that they want to receive. Messages may be sent directly to channels via the Broadcast() method in gRPC & graphQL. All state changes in the graph are sent by graphik to the state channel which may be subscribed to just like any other channel.

Additional Details

• any time a Doc is deleted, so are all of its connections

Sample GraphQL Queries

Get Currently Logged In User(me)

query {
  me(where: {}) {
    ref {
      gid
      gtype
    }
		attributes
  }
}

{
  "data": {
    "me": {
      "ref": {
        "gid": "[email protected]",
        "gtype": "user"
      },
      "attributes": {
        "email": "[email protected]",
        "email_verified": true,
        "family_name": "Word",
        "given_name": "Coleman",
        "hd": "graphikdb.io",
        "locale": "en",
        "name": "Coleman Word",
        "picture": "https://lh3.googleusercontent.com/--LNU8XICB1A/AAAAAAAAAAI/AAAAAAAAAAA/AMZuuckp6gwH9JVkhlRkk-PTZdyDFctArg/s96-c/photo.jpg",
        "sub": "105138978122958973720"
      }
    }
  },
  "extensions": {}
}

Get the Graph Schema

query {
  getSchema(where: {}) {
    doc_types
		connection_types
    authorizers {
      authorizers {
        name
        expression
      }
    }
		constraints {
			constraints {
				name
				expression
			}
		}
		indexes {
			indexes {
				name
				expression
			}
		}
  }
}

{
  "data": {
    "getSchema": {
      "doc_types": [
        "dog",
        "human",
        "note",
        "user"
      ],
      "connection_types": [
        "created",
        "created_by",
        "edited",
        "edited_by",
        "owner"
      ],
      "authorizers": {
        "authorizers": [
          {
            "name": "testing",
            "expression": "this.user.attributes.email.contains(\"coleman\")"
          }
        ]
      },
      "constraints": {
        "constraints": [
          {
            "name": "testing",
            "expression": "this.user.attributes.email.contains(\"coleman\")"
          }
        ]
      },
      "indexes": {
        "indexes": [
          {
            "name": "testing",
            "expression": "this.attributes.primary_owner"
          }
        ]
      }
    }
  },
  "extensions": {}
}

Set a Request Authorizer

mutation {
  setAuthorizers(input: {
    authorizers: [{
      name: "testing",
      method: "/api.DatabaseService/GetSchema",
      expression: "this.user.attributes.email.contains('coleman') && this.user.attributes.email_verified"
      target_requests:true,
      target_responses: true
    }]
  })
}

{
  "data": {
    "setAuthorizers": {}
  },
  "extensions": {}
}

Create a Document

mutation {
  createDoc(input: {
    ref: {
  		gtype: "note"
    }
    attributes: {
      title: "do the dishes"
    }
  }){
    ref {
      gid
      gtype
    }
    attributes
  }
}

{
  "data": {
    "createDoc": {
      "ref": {
        "gid": "1lU0w0QjiI0jnNL8XMzWJHqQmTd",
        "gtype": "note"
      },
      "attributes": {
        "title": "do the dishes"
      }
    }
  },
  "extensions": {}
}

Traverse Documents

# Write your query or mutation here
query {
  traverse(input: {
    root: {
      gid: "[email protected]"
      gtype: "user"
    }
    algorithm: BFS
    limit: 6
		max_depth: 1
		max_hops: 10
  }){
    traversals {
      doc {
        ref {
          gid
          gtype
        }
      }
      traversal_path {
        gid
        gtype
      }
			depth
			hops
    }
  }
}

Traverse Documents Related to Logged In User

query {
	traverseMe(where: {
		max_hops: 100
		max_depth:1
		limit: 5
	}){
		traversals {
			traversal_path {
				gtype
				gid
			}
			depth
			hops
			doc {
				ref {
					gid
					gtype
				}
			}
		}
	}
}

{
  "data": {
    "traverseMe": {
      "traversals": [
        {
          "traversal_path": null,
          "depth": 0,
          "hops": 0,
          "doc": {
            "ref": {
              "gid": "[email protected]",
              "gtype": "user"
            }
          }
        },
        {
          "traversal_path": [
            {
              "gtype": "user",
              "gid": "[email protected]"
            }
          ],
          "depth": 1,
          "hops": 1,
          "doc": {
            "ref": {
              "gid": "1lU0w0QjiI0jnNL8XMzWJHqQmTd",
              "gtype": "note"
            }
          }
        }
      ]
    }
  },
  "extensions": {}
}

Change Streaming

subscription {
	stream(where: {
		channel: "state"
	}){
		data
		user {
			gid
			gtype
		}
	}
}

{
  "data": {
    "stream": {
      "data": {
        "attributes": {
          "title": "do the dishes"
        },
        "ref": {
          "gid": "1lUAK3uwwmhQ503ByzC9nCvdH6W",
          "gtype": "note"
        }
      },
      "user": {
        "gid": "[email protected]",
        "gtype": "user"
      }
    }
  },
  "extensions": {}
}

Broadcasting a Message

mutation {
  broadcast(input: {
    channel: "testing"
    data: {
      text: "hello world!"
    }
  })
}

{
  "data": {
    "broadcast": {}
  },
  "extensions": {}
}

Filtered Streaming

subscription {
  stream(where: {
    channel: "testing"
		expression: "this.data.text == 'hello world!' && this.user.gid.endsWith('graphikdb.io')"

  }){
    data
		user {
			gid
			gtype
		}
  }
}

{
  "data": {
    "stream": {
      "data": {
        "text": "hello world!"
      },
      "user": {
        "gid": "[email protected]",
        "gtype": "user"
      }
    }
  },
  "extensions": {}
}

Deployment

Regardless of deployment methodology, please set the following environmental variables or include them in a ${pwd}/.env file

GRAPHIK_OPEN_ID=${open_id_connect_metadata_url}
#GRAPHIK_ALLOW_HEADERS=${cors_headers}
#GRAPHIK_ALLOW_METHOD=${cors_methos}
#GRAPHIK_ALLOW_ORIGINS=${cors_origins}
#GRAPHIK_ROOT_USERS=${root_users}
#GRAPHIK_TLS_CERT=${tls_cert_path}
#GRAPHIK_TLS_KEY=${tls_key_path}

Docker-Compose

add this docker-compose.yml to ${pwd}:

version: '3.7'
services:
  graphik:
    image: graphikdb/graphik:v1.3.0
    env_file:
      - .env
    ports:
      - "7820:7820"
      - "7821:7821"
    volumes:
      - default:/tmp/graphik
    networks:
      default:
        aliases:
          - graphikdb
networks:
  default:

volumes:
  default:

then run:

docker-compose -f docker-compose.yml pull
docker-compose -f docker-compose.yml up -d

to shutdown:

docker-compose -f docker-compose.yml down --remove-orphans

Kubernetes(Multi-Node)

Given a running Kubernetes cluster, run:

curl https://raw.githubusercontent.com/graphikDB/graphik/master/k8s.yaml >> k8s.yaml && \
  kubectl apply -f k8s.yaml

to view pods as they spin up, run:

kubectl get pods -n graphik -w

graphik plugs into kubernetes service discovery

Mac/OSX (Homebrew)

brew tap graphik/tools [email protected]:graphikDB/graphik-homebrew.git

brew install graphik

brew install graphikctl

Open ID Connect Providers

Google

• metadata uri: https://accounts.google.com/.well-known/openid-configuration

Microsoft

• metadata uri: See More

Okta

• metadata uri: https://${yourOktaOrg}/.well-known/openid-configuration See More

Auth0

• metadata uri: https://${YOUR_DOMAIN}/.well-known/openid-configuration See More

Glossary
